Description

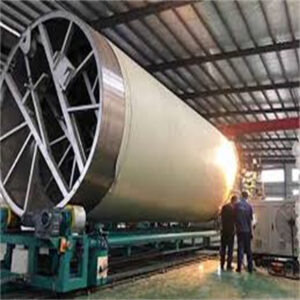

PPH spiral wound tank machine
Advantages
- One step spiral winding without welded
- Material: PP-HM, PP-B, PP-H, HDPE, PVDF
- The tank diameters: I.D. 600mm – I.D. 4500mm
- Tank length: 6m – 9m.
- Wall thickness: 120mm maximum.
- Output: 300 – 600 kg/h.
- Working life is more than 10 years.
Specs
| Item NO. | BSKLG-1200 |
| Diameters(mm) | 200 – 1200 |
| Maximum production speed (m/min) | 0.5 |
| Total installed power (kw) | 300 |
| Installed area (L×W) (m) | 30 × 15 |
| Item NO. | BSKLG-3000 |
| Diameters(mm) | 300 – 3000 |
| Maximum production speed (m/min) | 0.35 |
| Total installed power (kw) | 400 |
| Installed area (L×W) (m) | 35 × 15 |
| Item NO. | BSKLG-4000 |
| Diameters(mm) | 1500 – 4000 |
| Maximum production speed (m/min) | 0.15 |
| Total installed power (kw) | 640 |
| Installed area (L×W) (m) | 35 × 16 |
Application

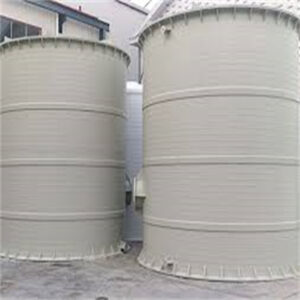

- Chemical tank
- Storage tank
- Water storage tank
