Description

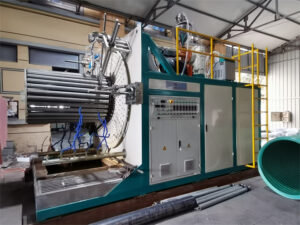

Solid wall spiral winding pipe extrusion line, diameters are from 200mm to 4000mm.
Advantages
- Highly efficient single extruder for high speed and high quality extrusion.
- Composite mold head with spiral rotating, unique design makes high quality pipe.
- Easy operation and steady running.
- Ringstiffness is much higher.
- Connection with special joints has economical working.
Spec
| No. | Diameters (mm) |
| SKRG800 | 200-800 |
| Extruder | SJ75+SJ55 |
| Motor (kw) | 45+18.5 |
| Installed power (kw) | 120 |
| Maximum capacity (kg/h) | 400 |
| Overall size (L×W×H) (m) | 23.5×10×3.2 |
| No. | Diameters (mm) |
| SKRG1200 | 300 – 1200 |
| Extruder | SJ90+SJ65 |
| Motor (kw) | 75+30 |
| Installed power (kw) | 200 |
| Maximum capacity (kg/h) | 550 |
| Overall size (L×W×H) (m) | 24×10×3.5 |
| No. | Diameters (mm) |
| SKRG1800 | 800 – 1800 |
| Extruder | SJ100+SJ75 |
| Motor (kw) | 110+45 |
| Installed power (kw) | 300 |
| Maximum capacity (kg/h) | 650 |
| Overall size (L×W×H) (m) | 24.5×11×5 |
| No. | Diameters (mm) |
| SKRG2400 | 1200 – 2400 |
| Extruder | SJ120+SJ75 |
| Motor (kw) | 132+55 |
| Installed power (kw) | 400 |
| Maximum capacity (kg/h) | 750 |
| Overall size (L×W×H) (m) | 32×16×6 |
| No. | Diameters (mm) |
| SKRG3000 | 1800 – 3000 |
| Extruder | SJ150+SJ90 |
| Motor (kw) | 200+90 |
| Installed power (kw) | 600 |
| Maximum capacity (kg/h) | 900 |
| Overall size (L×W×H) (m) | 32×15×8 |
